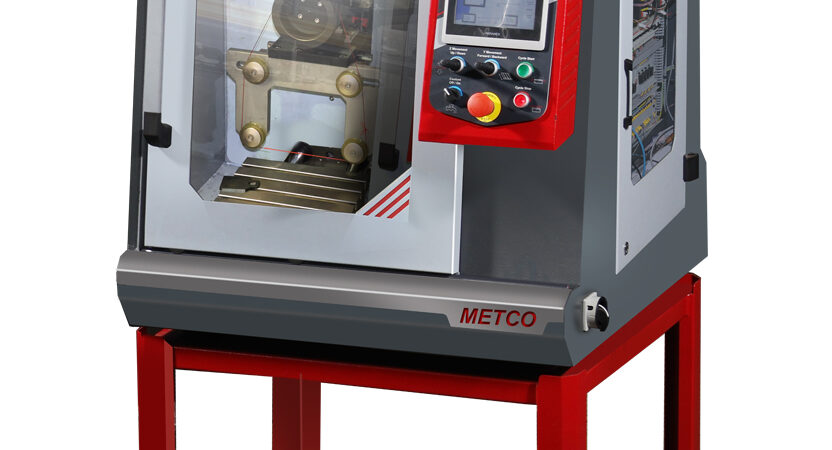

Automatic Vertical
Diamond Wire Cutter
Solid Welded Steel Construction with Floor Model
-
Maximum Workpiece Cutting Area – 100 x 100mm
Material Cut depth 0 – 50 mm
Diamond Wire – Thickness: 0.15mm – 0.50
Automatic cutting Y movement with Servo system
Y Axis: Maximum 50mm
Cam Vise for easy clamping
Automatic Cutting Servo system moves along Z direction
Z Axis : Maximum allowed movement 200mm
Multiple cuts along Y axis in the same program
-
Feed speed: 0.01mm / min to 5mm / min adjustable
Spooler spin speed: 1-250 RPM (adjustable)
Cutting depth: 0.1 – 50mm
recirculating coolant system
Single phase, 100-220V / 60 Hz
