Sectioning is the primary step in metallographic sample preparation. Area of interest has to be
sectioned from parent material using suitable cutter with appropriate cut of wheel intended for
the application.Smooth finish and burn free sample is ideal for metallographic examination.
Chennai Metco offers wide range of sectioning equipment’s depending upon the sample’s size,
application and industrial need.
Metallography Equipment – Baincut Medium PRODUCT CODE: CMM001 Cutting capacity up to 60 mm dia. Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size : 110 X 200 mm with … Readmore
Metallography Equipment -Baincut Medium Auto PRODUCT CODE: CMM001A Cutting capacity up to 60 mm dia Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size :110 X 200 mm with 10 … Readmore
Metallography Equipment -Baincut Medium Table Top PRODUCT CODE: CMT022 Cutting capacity up to 60 mm dia Powered by Motor 3 HP, 3 phase motor Cut-off wheel dia 10″ (250 mm) Spindle speed 2800 rpm Table size :110 X 200 mm with … Readmore
Metallography Equipment – Baincut UM Auto PRODUCT CODE: CMU002A Cutting action- Automatic “ Y ”movement (Table) with Servo SystemPLC with Graphical Touch Screen DisplayVariable Feed Rate with Cutting LengthPre Set Programming & Data Storage upto 25 programs The Machine offers also … Readmore
Metallography Equipment – Baincut UM PRODUCT CODE: CMU002 Cutting capacity up to 80 mm dia Powered by Motor 5 HP, 3 phase motor Cut-off wheel dia 12″ (300 mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 2800 rpm Table size … Readmore
Metallography Equipment – Baincut Large PRODUCT CODE: CML004 Cutting capacity up to 110 mm dia Powered by Motor 7.5 HP, 3 phase motor Cut-off wheel dia 14″ (350mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm Table … Readmore
Metallography Equipment – Baincut Large Plus PRODUCT CODE: CMLP015 Cutting capacity up to 130 mm dia Powered by Motor 10 HP, 3 phase motor Cut-off wheel dia 16″ (400mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm … Readmore
PRODUCT CODE: CML004A Metallography Equipment – Baincut Large Auto Cutting capacity up to 110 mm dia Powered by Motor 7.5 HP, 3 phase motor Cut-off wheel dia 14″ (350mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 rpm … Readmore
Metallography Equipment – Baincut Large Plus Auto PRODUCT CODE: CMLP015A Cutting capacity up to 130 mm dia Powered by Motor 10 HP, 3 phase motor Cut-off wheel dia 16″ (400mm) 3 Axis user friendly movement (X,Y,Z) Spindle speed 1800 – 1900 … Readmore

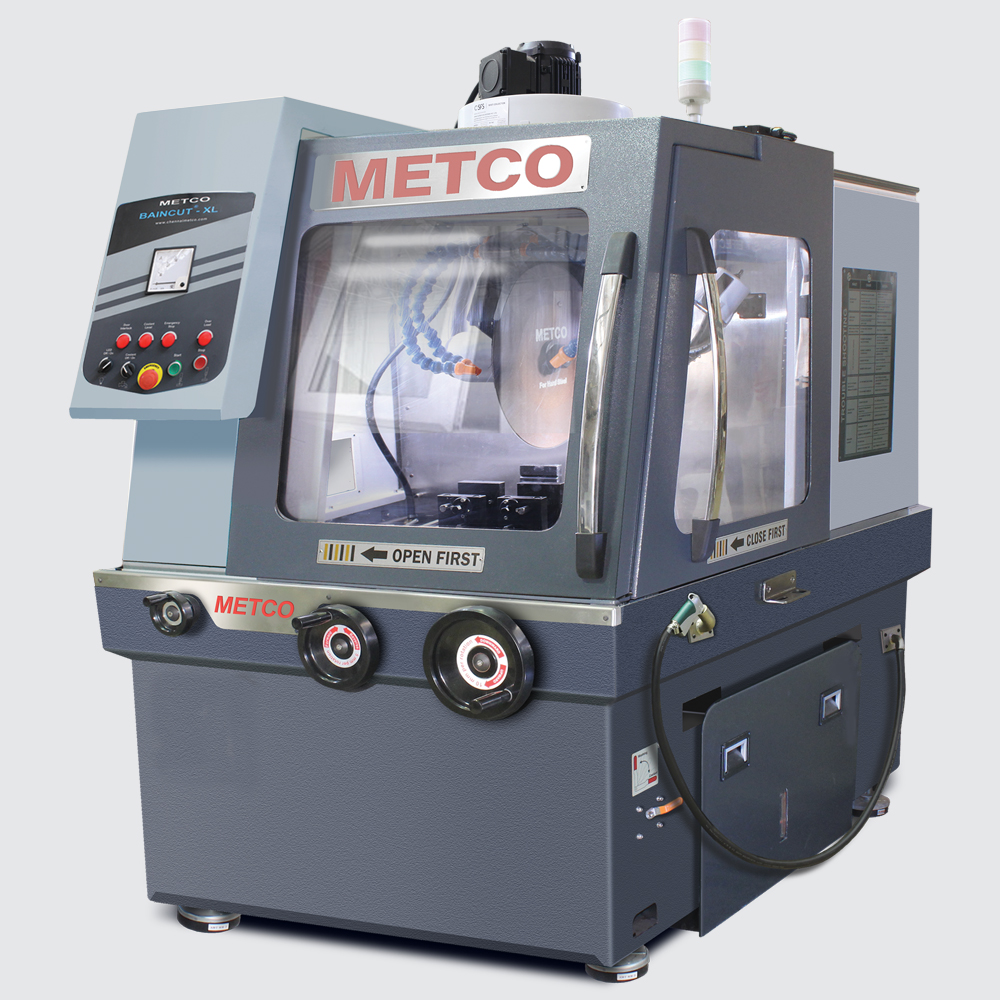

Metallography Equipment – Baincut XL PRODUCT CODE: CMXL016 Cutting capacity up to 150 mm dia Powered by Motor 15 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm Coolant … Readmore

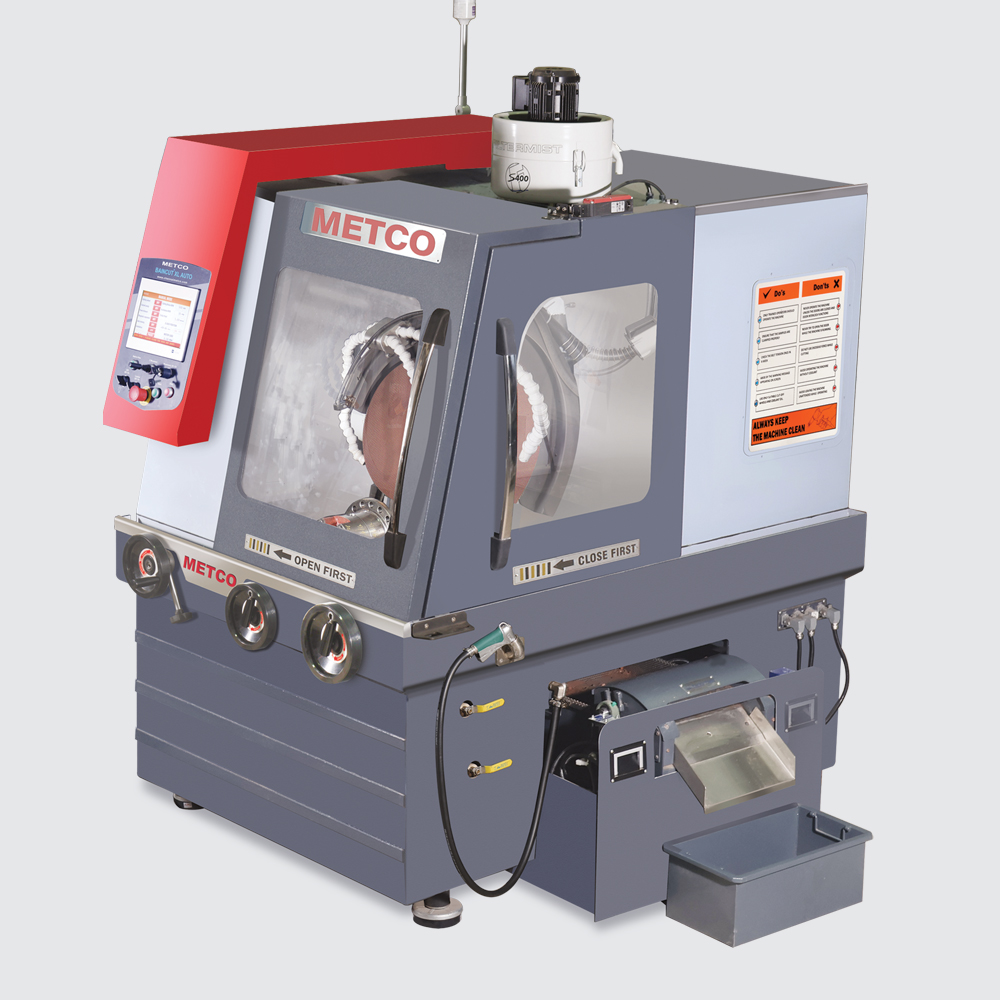

Metallography Equipment – Baincut XL PRODUCT CODE: CMXL016A Cutting capacity up to 150 mm dia Powered by Motor 15 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm Coolant … Readmore

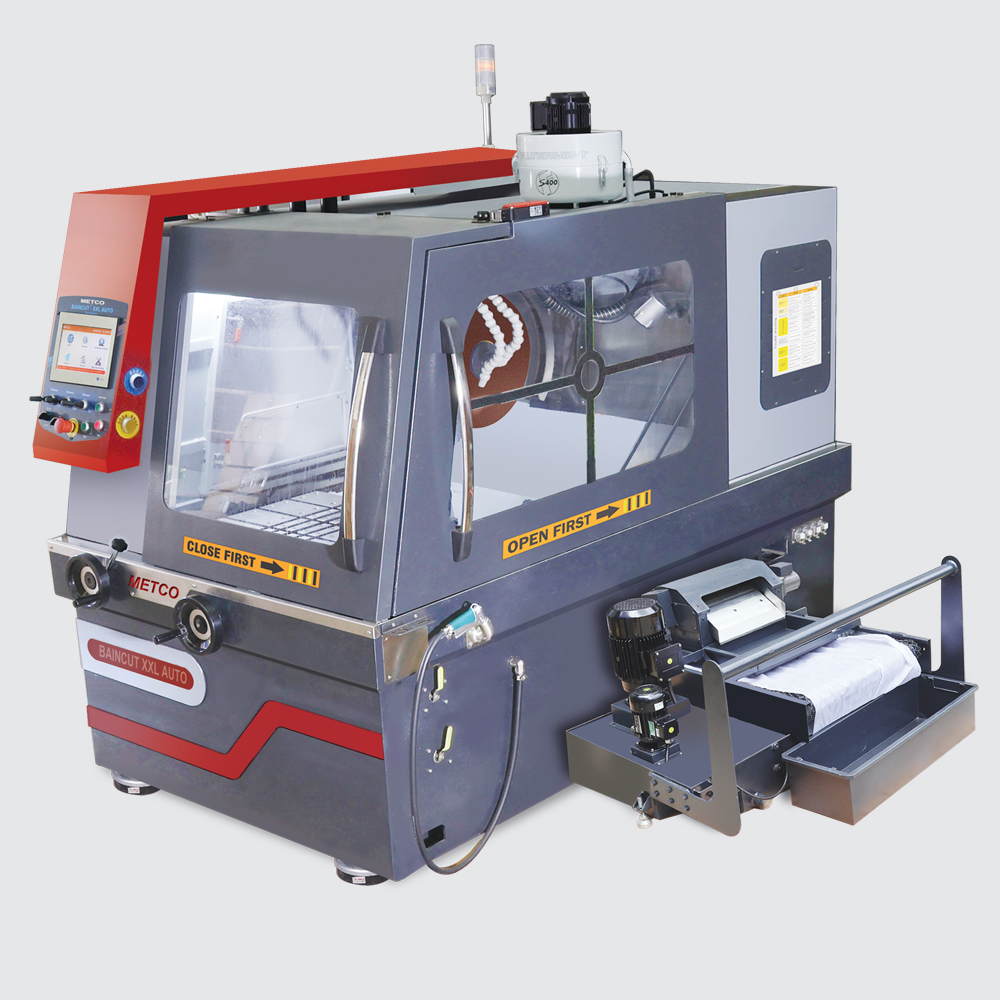

Metallography Equipment – Baincut XXL Auto PRODUCT CODE: CMXXL017A Cutting capacity up to 180 mm dia8 Powered by Motor 30 HP, 3 phase motor Cut-off wheel dia 20″ (500mm) 3 Axis user friendly movement (X,Y,Z) Variable speed 1000 – 3000 rpm … Readmore
