Semi Automatic

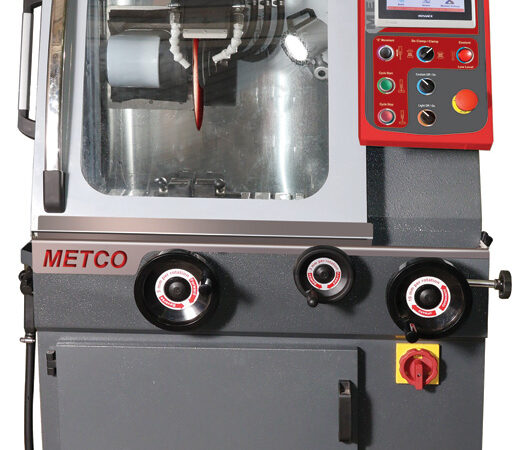

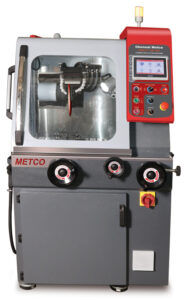

Baincut Large – Carbide Rod Cutter
In modern manufacturing cutting the carbide rods HSS, and other hard rods is primary step in tools/parts production, specially made cutting machines are essential to accomplish sectioning to desired length.
Machines are available to suit the production needs depending on customer situation. From simple manual, semi automatic to fully automatic.
All the machines offer proper V block holding, Length setting, Coolant delivery, Filtration etc.,
-
Sturdy Floor Model Carbide and HSS rod Cutter
-
Cutting Capacity 3mm to 50 mm ( 2”) dia
7.5 HP (5.5 k.w), 3 Phase Motor
Electronic Brake Motor System
Note: Additional Safety Feature to stop the Motor and the cutting wheel immediately once the Cutting is stopped
Spindle speed 1850 rpm , Spindle dia 31.75mm(25.4mm optional)
Diamond Wheel dia 12” (300 mm) / 14” ( 350 mm)
Cutting Action: Automatic with Servo System for ‘Z’ Movement of Cutting Wheel
Easy Flow Cutting Chamber with Special floor coating
Work Holding V-block with Brass Insert, Pneumatic Clamping, and Adjustable Pressure System
-
Manual Adjustable Measuring and Stopper for Carbide rod from 20 mm to 400mm Length
Cooling by two high flow Coolant system
Cut off Wheel Cooling through two Additional Coolant jets
Inbuilt Movable Recirculation Coolant Tank with 100-Liter Capacity, Equipped with Two-Stage Filtration: 50-Micron and
5-Micron Filter Bag Facility
0.3 Kw Coolant Recirculation Pump
Voltage: 415V/50 Hz (R+Y+B+N+E)/ (Optional Voltage 220V / 60Hz / 3 Phase / R+Y+B +PE)
Machine Size: 1550mm x 690 mmx 1600mm ( L x D x H)
Weight Approx.850 kg
Machine Color: Enclosures RAL 7040, Base and Stand RAL 7016
