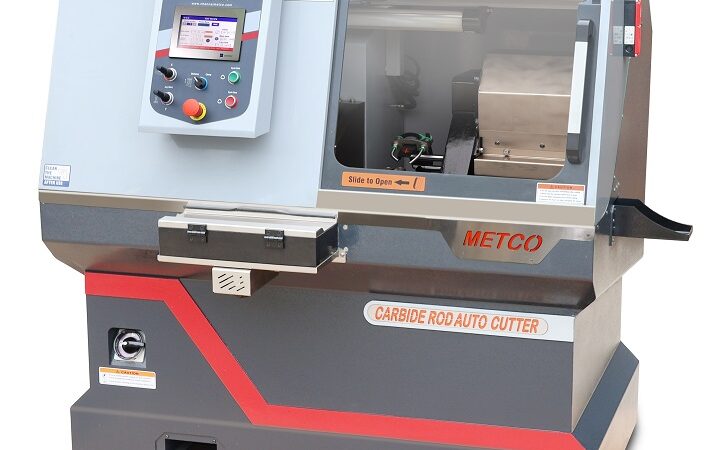

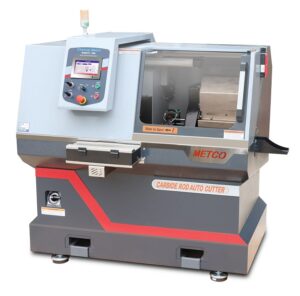

Fully Automatic
Cutting cum chamfering carbide tool grinding machine
In modern manufacturing grinding the carbide rods HSS, and other hard rods is primary step in tools/parts production, specially made grinding machines are essential to accomplish grinding to desired length.
Machines are available to suit the production needs depending on customer situation. From simple manual, semi automatic to fully automatic.
All the machines offer proper V block holding, Length setting, Coolant delivery, Filtration etc.,
-
Sturdy Floor Model grinder, grinding capacity 3 to 40 mm dia
-
Carbide Rod blank length 50 mm To 400 mm
Spindle Speed 100-4000 RPM (Variable System)
Spindle dia 31.75 mm(25.4 mm Optional)
5HP (3.5 k.w), 3 Phase Motor
Automatic Carbide Rod Loading
Automatic Carbide Rod Length positioning
Variable feed rates for Cutting Carbide rod
Intellifeed to reduce the feed rate when resistance to cutting
Advanced Touch Screen Panel with Cycle Start, LED Light, Emergency Stop,
Start Button with Door Safety Interlock system
-
Automatic individual Pneumatic clamping system
PLC with Advanced Colour Graphical Touch Screen
Pre Set Programming and Data Storage up to 100 programs
Coolant neat oil input port to draw from plant centralized coolant system
High flow coolant jets to provide optimum cooling
The Coolant sensor interlock to prevent dry cutting
Tower Lamp, Electronic Brake system, Door safety inter lock
Voltage: As per customer requirement
