Baincut HSS
Metallography Equipment - Baincut HSS

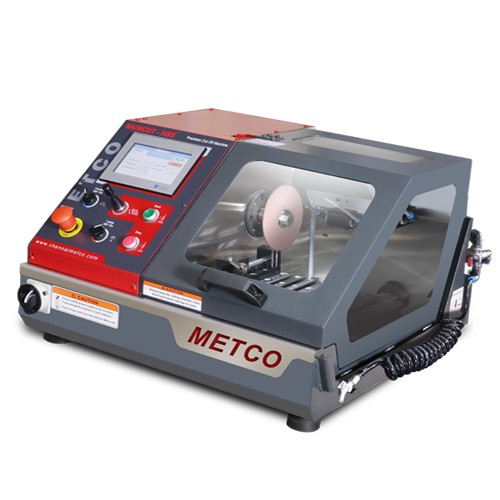

Precision cut off machine
PRODUCT CODE: CMHSS049
- Cutting capacity upto 40 mm dia
- Rotating vise can increase cutting depth
- re-circulation coolant system
- automatic Y-movement ( Longitudinal)
- Variable speed system 100-4000 rpm
- Variable feed rates and cutting length
- Power single phase 1 HP : 220V/50Hz or 110V/60Hz3
- Machine size: 810 x 810 x 550 mm (L X B X H)
The precision saw for cutting all types of materials with variable spindle speed. automated Y movement adds to the convenience. A must for slicing Surface engineered components, hard, Sensitive applications. Preferred by research Laboratories.

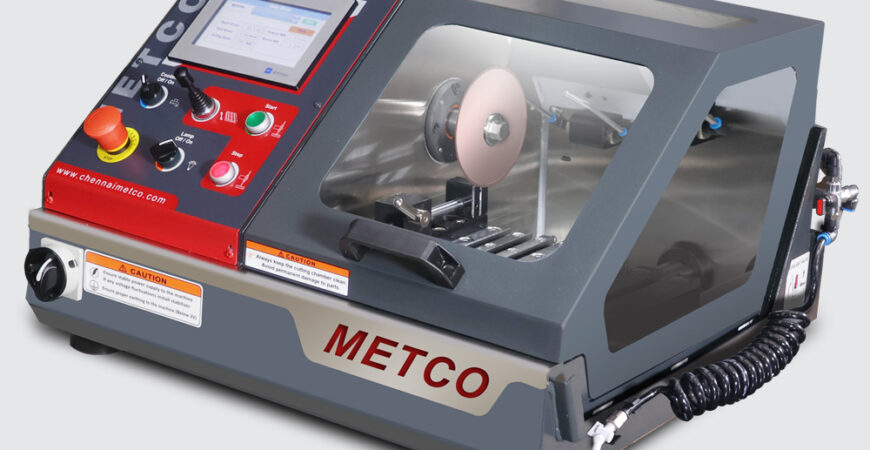

A precision section saw designed for cutting all types of materials with ease
Cutting capacity up to 40 mm
Wheel Mounting Shaft OD -12.7 X 25.4 X 31.75 mm
Automatic Cut-Off
Cutting Action – Y Movement Automatic (Longitudinal)
7″ Advance color Graphical touch screen
Variable Feed Rates and Cutting Length
External Recirculation Coolant System with 50 ltrs capacity
1 HP (750 watts) 3 Phase Motor
Continuously Variable speed system 100-4000rpm
Door Limit Switch System
X Movement upto 50 mm
Wheel Should be accommodated Min 3″ to Max 8″ (Wheel Dia)
Electrical: 230 V, 50 Hz ( 1 + N + E )
Machine Size: 810mm x 810mm x 550mm (LxBxH)
Machine Color: Enclosures RAL 7040, Base & Stand RAL 7016
Optional Accessories
Door Safety Interlock System : Additional Safety Feature where the Door cannot be opened unless the Cutting process is stopped
Loto Switch & Tag Out: During Maintenance and Break Downs the Loto Switch can be switched off and locked with the tag key. This prevents from switching on the machine by mistake and avoids damage704
Consumables

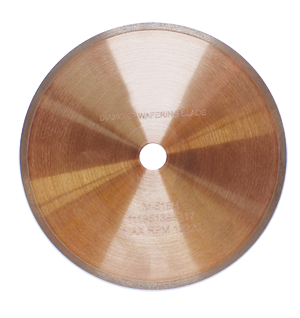

Cutoff Wheel
Size (mm)
Uses
Application
HRC
EU620L
150 X 12.7 X 0.5
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory (above 60HRC)
EU725L
175 X 12.7 X 0.6
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory (above 60HRC)
CWD002
200 X 31.75 X 1.2
Low Concentration Blade
Alumina ceramic, Silicon-Nitride ceramic, glass, copper, and iron, ruby, Quartz, Silica
CWD003
150 X 31.75 X 1
Low Concentration Blade
Alumina ceramic, Silicon-Nitride ceramic, glass, copper, and iron, ruby, Quartz, Silica
EU845D
200 X 31.75 X 1.1
High Concentration Blade
Hard Ferrous materials
EU620H
150 X 12.7 X 0.5
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU725H
175 X 12.7 X 0.6
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU620C
150 X 12.7 X 0.6
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
EU845C
200 X 31.75 X 1.1
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
DB101
Isomet Oil
Coolant for burn free cutting
Oil-based coolant which can efficiently reduce the Cycle time of Cutting. Used with precision cutting saws. Do Not Mix with Water
