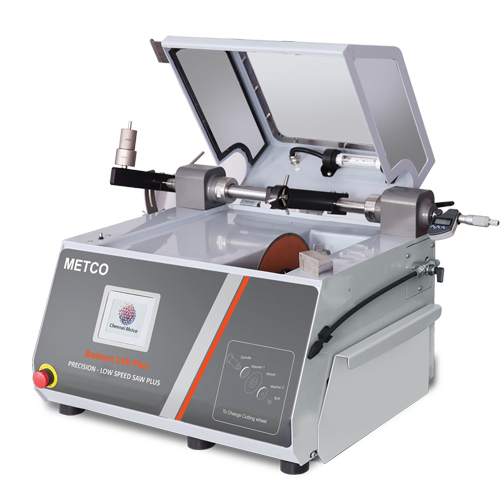

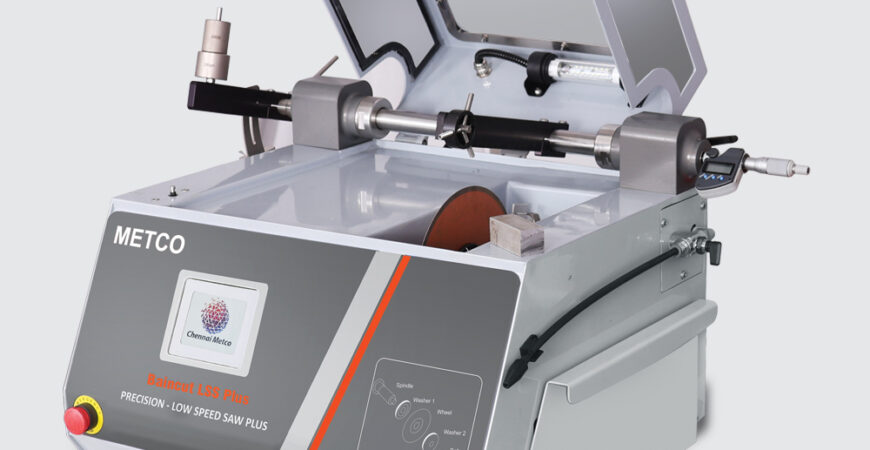

Baincut LSS Plus
Metallography Equipment - Baincut LSS Plus
Precision cut off machine
PRODUCT CODE: LSS003A
- Cutting capacity up to 50 mm dia
- Cut-off wheel dia 4" to 7"
- Positioning accuracy 0.01 mm
- Color touch screen HMI
- Arbor size-12.7mm
- Spindle speed 60 - 1000 rpm
- Machine size: 650mm X 550mm X 420mm
A precision section saw designed for cutting all types of materials with ease. Low-Speed Precision cutter is applicable to accurate cutting of hard materials, especially to high-value fragile artificial crystal. The Spindle has high accuracy of operation, the horizontal feed position of the processed work piece can slightly be adjusted, and the machine can be power-off automatically after cutting is finished.
Key Features
Optional
Work Holding Device
Height Adjustment Block (Imported)
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
EU515L
125 X 12.7 X 0.4
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory
EU620L
150 X 12.7 X 0.5
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory (above 60HRC)
CWD002
150 X 31.75 X 1
Low Concentration Blade
Alumina ceramic, Silicon-Nitride ceramic, glass, copper, and iron, ruby, Quartz, Silica
EU515H
125 X 12.7 X 0.4
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU620H
150 X 12.7 X 0.5
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU515C
125 X 12.7 X 0.5
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
EU620C
150 X 12.7 X 0.5
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
DB101
Isomet Oil
Coolant for burn free cutting
Oil-based coolant which can efficiently reduce the Cycle time of Cutting. Used with precision cutting saws. Do Not Mix with Water
