Baincut LSS
Metallography Equipment - Baincut LSS

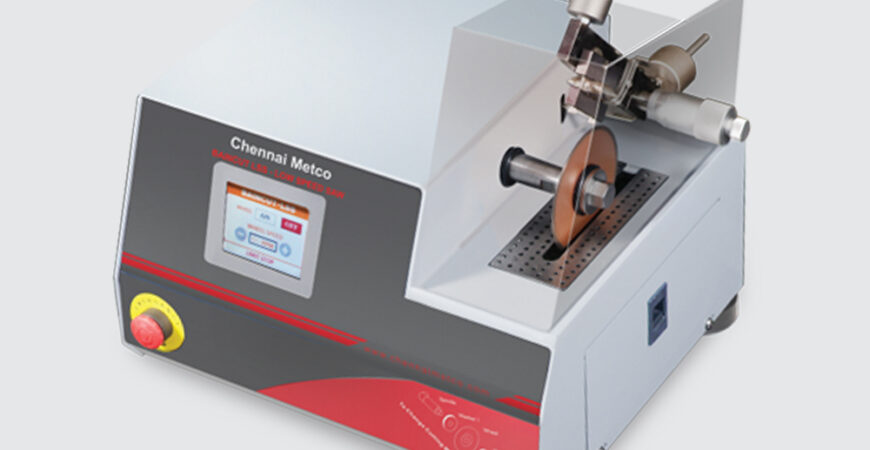

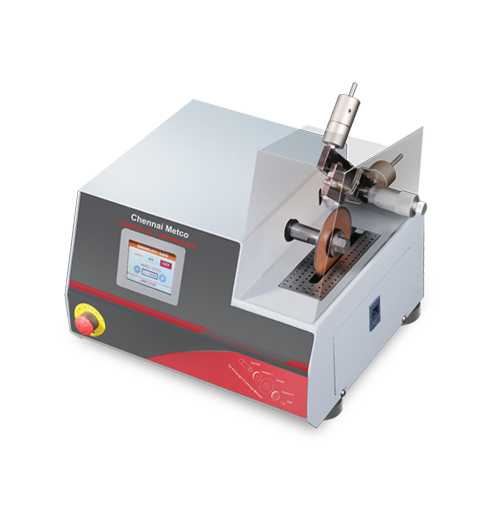

Precision cut off machine
PRODUCT CODE: LSS003
- Cutting capacity up to 20 mm dia - 4" wheel
- Cutting capacity up to 30 mm dia - 5" Wheel
- Rotating fixer to increase double the capacity 40 mm
- Touch screen with pre set programs
- Spindle speed 600 rpm
- Machine size: 400mm X 300mm X 250mm
The precision section saw is designed for slicing all types of materials with ease. The slow speed cutter is mostly used for accurate sectioning of very small, hard components for R & D.
Key Features
Optional
Work Holding Device
Height Adjustment Block (Imported)
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
EU412L
100 X 12.7 X 0.3
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory
Above 60 HRC
EU515L
125 X 12.7 X 0.4
Low Concentration Blade
Ceramics, Carbides, Boron Composites, Glass, Refractory
CWD001
100 X 12.7 X 0.3
Low Concentration Blade
Alumina ceramic, Silicon-Nitride ceramic, glass, copper, and iron, ruby, Quartz, Silica
EU412H
100 X 12.7 X 0.3
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU515H
125 X 12.7 X 0.4
HIgh Concentration Blade
Polymers, PC Boards, Titanium, Thermal Spray Coating, Metal Matrix Composite
EU412C
100 X 12.7 X 0.3
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
EU515C
125 X 12.7 X 0.4
CBN Blade
High-speed steels, Inconel, Stellite, Iron and Cobalt based alloys, Nickel based Super alloys, Lead base alloys, Titanium alloys and Stainless Steels
DB101
Isomet Oil
Coolant for burn free cutting
Oil-based coolant which can efficiently reduce the Cycle time of Cutting. Used with precision cutting saws. Do Not Mix with Water
