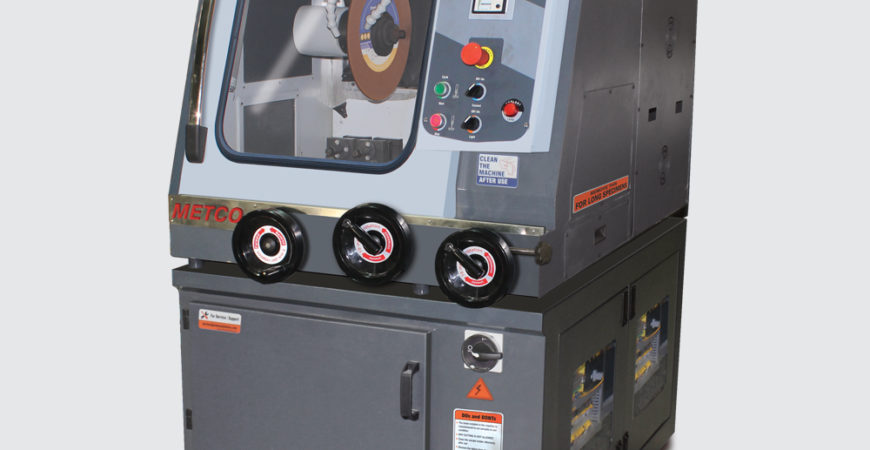

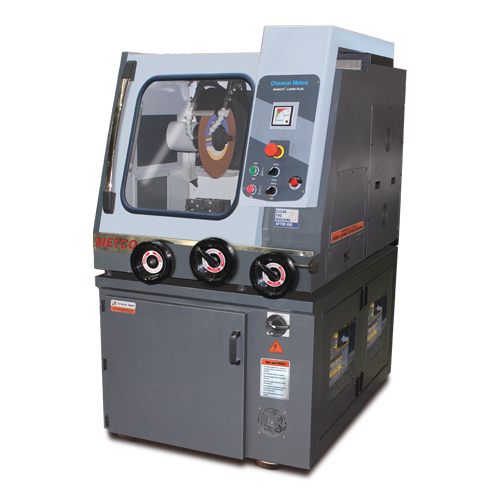

Metallography Equipment - Baincut Large Plus
PRODUCT CODE: CMLP015
- Cutting capacity up to 130 mm dia
- Powered by Motor 10 HP, 3 phase motor
- Cut-off wheel dia 16" (400mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 1800 - 1900 rpm
- Table size : 254 mm X 355 mm X 2 Nos with 12 mm T-slot
- Machine size: 1040mm X 1600mm X 1800mm (L x D x H)
Large plus heavy-duty cutting machine with integral construction. .
Optional
Work Holding Device
Koppel Fixture (imported)
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW009PR
400 X 31.75 X 3.2
Partially Reinforced
Suitable for case hardened and medium hard ferrous metals
UPTO 40
2800
CW0079FR
400 X 31.75 X 3.2
Fully Reinforced
Suitable for very hard ferrous material and tough cutting components
40 – 60
2800
CB01037A00
COOLANT TANK FILTER BAG
DUST COLLECTION
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
