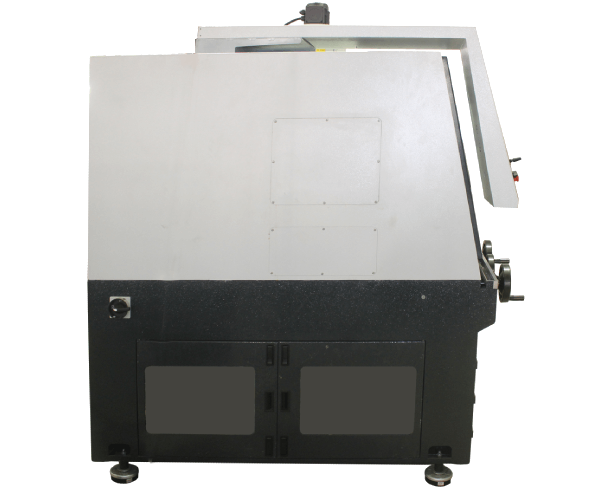

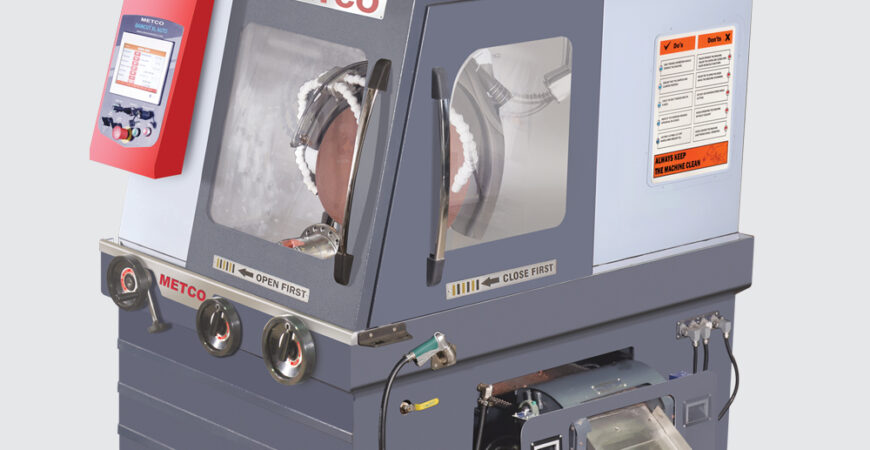

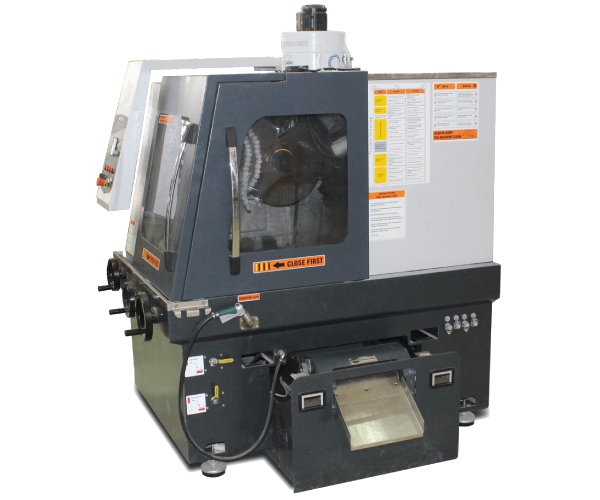

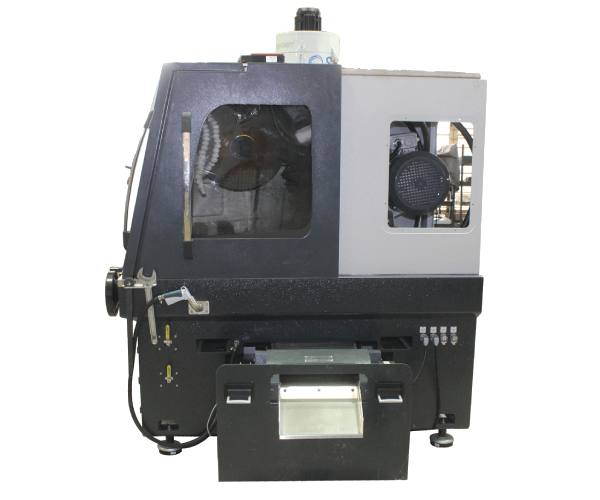

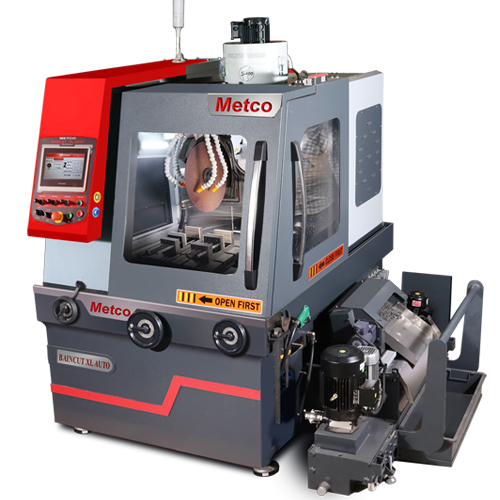

Baincut XL Auto
Metallography Equipment - Baincut XL
PRODUCT CODE: CMXL016A
- Cutting capacity up to 150 mm dia
- Powered by Motor 15 HP, 3 phase motor
- Cut-off wheel dia 20" (500mm)
- 3 Axis user friendly movement (X,Y,Z)
- Variable speed 1000 - 3000 rpm
- Coolant tank with 200 L capacity
Automatic Extra Large heavy-duty cutting machine with Integral sliding door construction.
Standard Y automation with optional Z automation. Pulse cutting, step cutting etc.,for burn free cutting. Preset parameters for consistency and ease of use.
Key Features
Optional
Static paper filter system
Used to filter the Coolant Dust up to 50 to 100 micron level and send clean coolant to the Re circulation tank
Work Holding Device
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW013S
500 X 31.75 X 3.2
Partially Reinforced
For extra hard ferrous metals and heavy-duty components
UPTO 40-60 HRC
2200
CW015FR
500 X 31.75 X 3.2
Fully Reinforced
Suitable for very hard ferrous material and tough cutting components
40 HRC
2200
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
