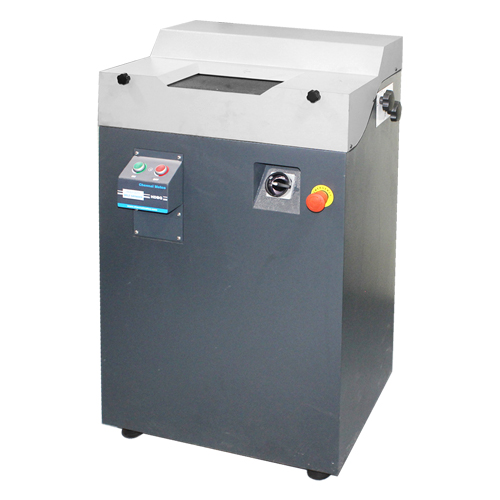

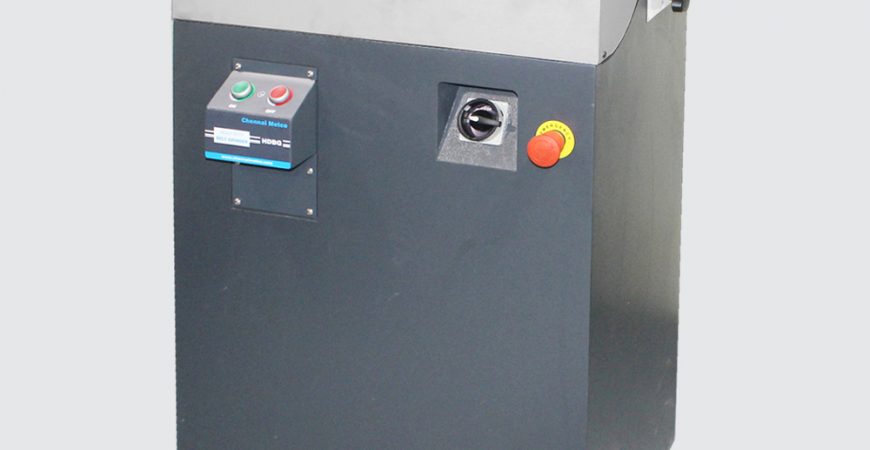

Bainline H
Bainline H
PRODUCT CODE: BGH005
- Motor :1 HP 3 Phase motor, 1440 rpm
- 100 mm X 1220 mm endless belt
- Simplified belt change and alignment mechanism
- Mechanical double speed design
- Machine size : 700 X 500 X 1100 mm
- Work piece area : 150 X 250 mm
For Flat, coarse grinding prior to fine grinding. The specimens are to be ground in 60,80 or 120 grit after cutting / mounting
For Pre-Grinding of Metallurgical Specimen & Large metal section
Rigid Floor Model construction
Dual Speed Mechanism for Mechanical
Less Vibration Design
1 HP 3 phase motor
150mm x 1220mm Endless Abrasive Belt
Constant Tension Spring Loaded
Aluminium Pulleys with Belt Drive Mechanism
Simplified Belt release mechanism
Easy removable Dust cover system
Power supply : 415 V / 50Hz ( R + Y + B + N + E )
Machine Size:700x500x1100mm
Machine Color: Enclosure RAL 9003, Base RAL 7021
