Brinell BH 3000DX
Brinell BH 3000DX

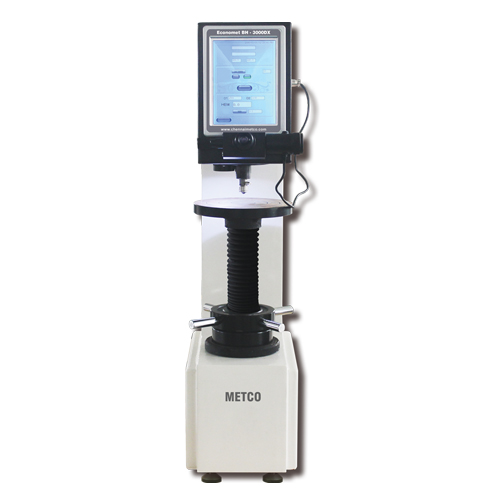

Digital Brinell Hardness Tester
- Testing load: 62.5 kgf to 3000 kgf
- Hardness Testing Range : 8-650HBW
- Distance of indenter to outer wall: 155 mm
- Testing force application method: Automatic Loading and Unloading
Digital brinell hardness tester with touch screen display
Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 | |
|---|---|---|
Testing force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf(14710N), 3000kgf(29420N) | |
Test force accuracy | 62.5~250kgf ≤ 1% , 500~3000kgf ≤ 0.5% | |
Duration time | 1~99s | |
Measuring device resolution | 0.5% | |
Min.Height of Specimen | 200mm | |
Distance of indenter to outer wall | 155 mm | |
Indication of Hardness value | Touch screen, USB flash disc | |
Power supply | AC220+5%,50~60Hz | |
Overall dimension (mm) | 550 X 210 X 780 mm |
Standard accessories
Eyepiece
Hard alloy ball indenter dia 2.5m5m10mm
Test block (HBW10/3000, HBW10/1000,HBW2.5/187.5)
