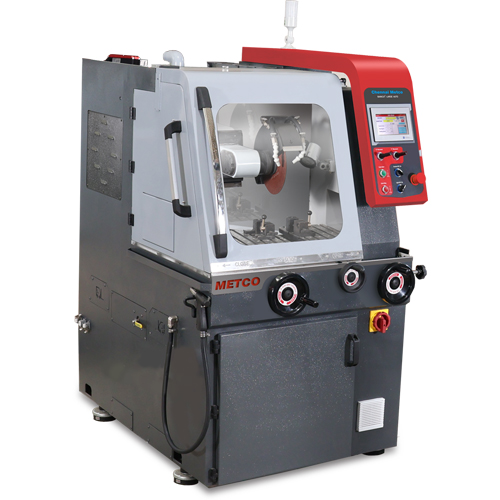

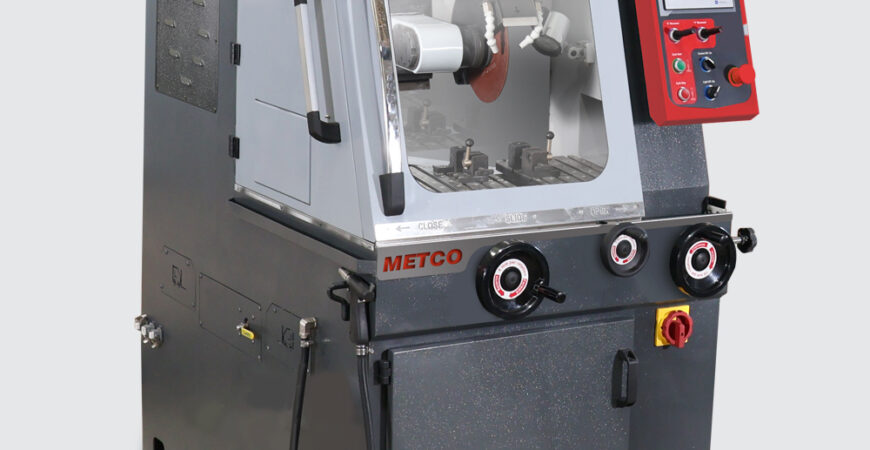

Baincut Large Auto
PRODUCT CODE: CML004A
Metallography Equipment - Baincut Large Auto
- Cutting capacity up to 110 mm dia
- Powered by Motor 7.5 HP, 3 phase motor
- Cut-off wheel dia 14" (350mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 1800 - 1900 rpm
- Table size : 254 X 355 mm x 2 nos with 12 mm T-slot
- Machine size: 1040mm X 1600mm X 1800mm (L x D x H)
Automatic large heavy-duty cutting machine with integral construction. Standard Y automation. Plus cutting for burn free cutting. Preset parameters for consistency.
Key Features
Optional
Coolant spillage tray
It helps while cutting extra lengthy samples
Work Holding Device
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW003FR
300 X 31.75 X 2
Fully Reinforced
Suitable for very hard ferrous material and tough cutting components
UPTO 40
3800
CW007
350 X 31.75 X 2.5
Hard Steel Cutting
Ferrous material such as high carbon and Hardened steel
40 – 60
3200
CB01037A00
COOLANT TANK FILTER BAG
DUST COLLECTION
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
