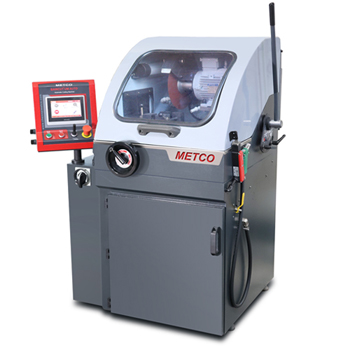

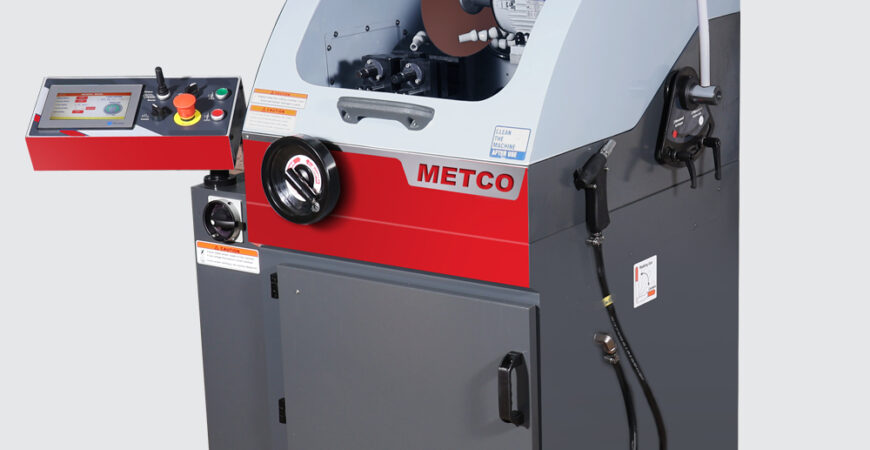

Metallography Equipment - Baincut UM Auto
PRODUCT CODE: CMU002A
Cutting action- Automatic “ Y ”movement
(Table) with Servo System
PLC with Graphical Touch Screen Display
Variable Feed Rate with Cutting Length
Pre Set Programming & Data Storage upto 25 programs
The Machine offers also manual mode for increased flexibility
- Cutting capacity up to 80 mm dia
- Powered by Motor 5 HP, 3 phase motor
- Cut-off wheel dia 12" (300 mm)
- 3 Axis user friendly movement (X,Y,Z)
- Spindle speed 2800 rpm
- Table size : 260 X 260 mm with 10 mm T-slot
- Machine size: 1100mm X 1300mm X 1640 mm (L x D x H)
Key Features
Optional
Work Holding Device
Koppel Fixture ( Imported)
Additional fixture to hold irregular shaped components
Special Fixture
Fixture that can be designed specifically for your components
Swivel Base
Consumables
Cutoff Wheel
Size (mm)
Uses
Application
HRC
RPM
CW003
300 X 31.75 X 2.0
Regular Cutting
Ferrous Material
such as Low carbon
to medium carbon
40 HRC
3800
CW006
300 X 31.75 X 2.0
Hard Steel Cutting
Ferrous Material
such as High carbon
and Hardened Steel
40 – 50 HRC
3800
CB01037A00
Coolant tank filter bag
CFC008
Corrosion-Free Coolant Oil
Coolant for burn free cutting
Ratio: Mixed with demin water only 1:20 (coolant:water)
