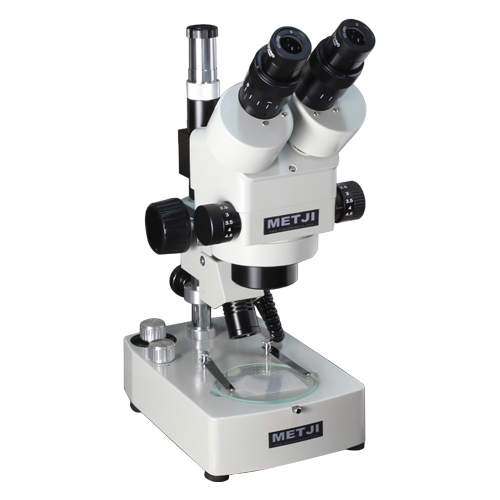

Metji Streo Zoom
Macscope - Z
Product Code: MS004A
- Standard magnification 0.7X to 4.5X
- Magnification: 7x - 45X
- Field of view : 32 mm - 5.1mm ( with 10x eyepieces)
- Interpupillary distance : 54mm - 75 mm
A superbly designed stereo zoom microscope with greenough optics for high-contrast images and an excellent zoom range of 6.5:1 that is parfocalled all throughout the zoom range.
Zoom Range | from 0.7x – 4.5x |
|---|---|
Zoom Ratio | 6.5:1 |
Microscope Body | 45* inclined eyetube inclination,Trinocular rotatable 360° |
Eye Pieces | Widefield WF-10X |
Field of view | 32mm – 5.1mm (with 10x eyepieces) |
Magnification Range | 7x – 45x |
Interpupillary Distance | 54mm – 75mm |
Working Distance | 104 mm |
Stand | Pole stand with F holder focusing block. Provides both trasmitted and incident halogen illumination with variable intensity control. Illuminators may be operated independently or simultaneously. Supplied with a 94.5mm diameter clear glass stage plate, reversible black and white stage plate and two stage clips. |
Dimensions | Length: 240mm/width:160mm |
Height | 280mm/Pillar Diameter: 20mm |
Bulbs | Incident/Trans: Halogen bulb, 6v,10w |
Accessories | 0.5 x objective, 1.5x objective, Ring illuminator 8wts set |
Accessories: 0.5 x objective, 1.5x objective, Ring illuminator 8wts set
