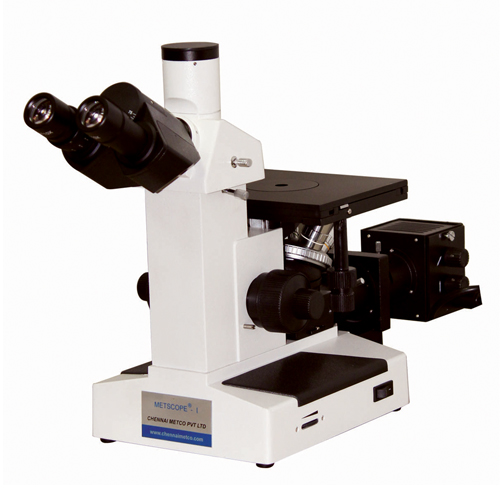

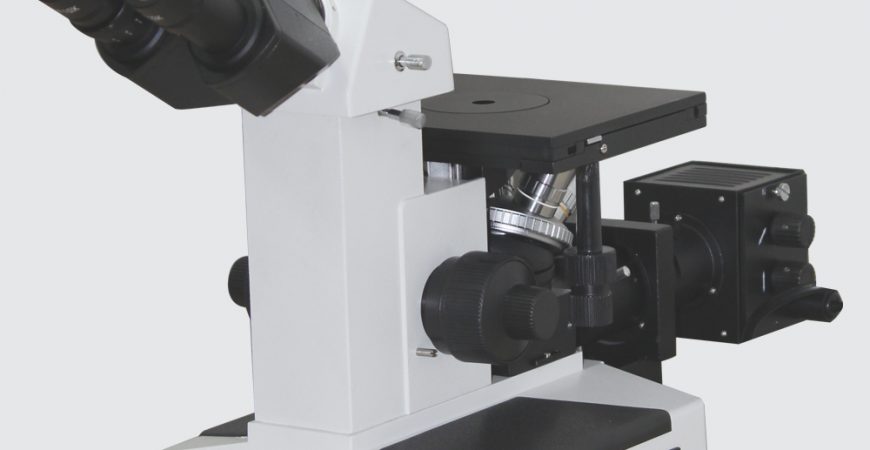

Metscope I
Metscope I
Product Code: M101
- Eyepiece : 10X
- Objectives : 10X, 20X, 50X, 100X oil (100 X dry optional)
- Magnification Range : 100X -1000X (Standard)
- Illumination : 6V, 20W
- A third port available for camera
Convenient ‘inverted’ model for quick micro analysis, with
ergonomic design. The best fusion of price and performance.
Objectives | Plan achromatic objectives 10x, 20x, 50x, 100X (oil) |
Eyepieces | Widefield WF-10X |
Magnification Range | 100X – 1000X (standard) |
Mechanical Stage | Co- axial mechanical square stage 200mm x 152mm |
Observation Tube | High transmission Trinocular head equipped with 45* inclined observation tubes and adjustable interpupillary distance |
Illumination | Built in Koehler’s incident illuminator with 6V 20W halogen lamp, field and aperture diaphragm with yellow, green and blue filters |
Focusing | Coarse and fine co-axial focusing on Ball track movement for greater reliability. |
Coarse motion range | 35mm. Fine focusing range 1.4mm |
Camera Adapto | C-Mount adaptor |
Optional Accessories
20X Eye Piece
100X Objective (Dry)
Measuring Scale Reticule 10/100
0.5 x reduction lens adaptor
