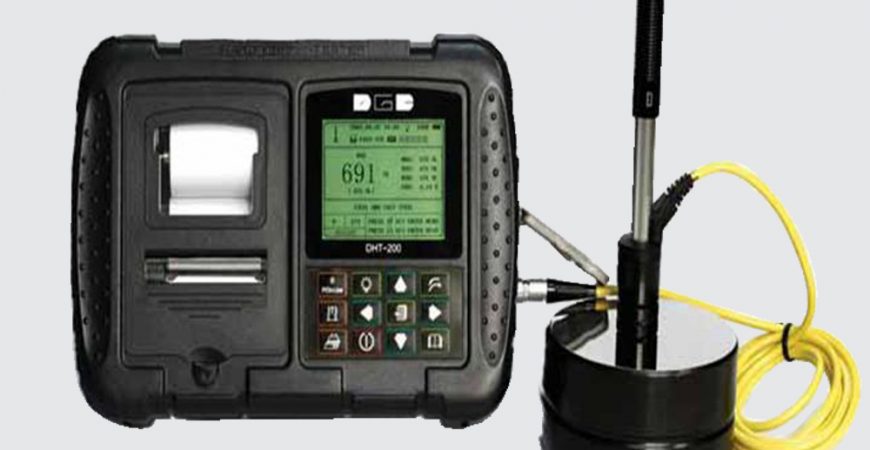

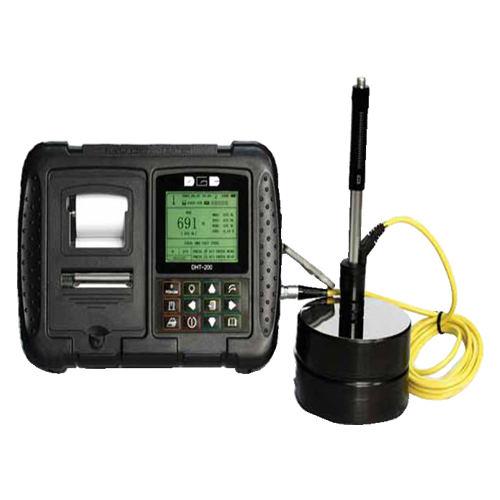

Portable Hardness Tester PHT - 200 Plus
Portable Hardness Testers
PHT-200 Plus
- Display : Colour LCD display
- Hardness Scales: HL, HRC,HRB,HV,HS
- Memory: 100 data/group
- Output: USB interface w/o software & built-in mini printer
PHT-200 Plus portable hardness tester based on the principle of leeb theory, can be used for hardness testing of various metals.
Display function | Impact direction, Date, Time, Battery life status, Memory reference, Hardness Scale, Hardness Value, Average Value, Max/Min Value, Material, Type of Impact device connected |
|---|---|
Standard Impact Device | D |
Hardness Scales | HL, HRC, HRB, HV, HB, HS |
Tensile Strength UTS Range | from 370 to 2000 (106 N/mm) |
Materials | Steel & cast steel, Alloy tool steel, Stainless steel, Grey cast iron, Spheroidal iron, Cast aluminum, Brass, Bronze and Copper |
Accuracy | ± 0.5% (HLD=800) |
Standard | According to ASTM A 956 |
Memory | 100 files, 100 data/file |
Output | USB interface without software & Built-in mini-printer |
Probe Identification | Auto |
Min. Radius of work piece(Convex/Concave) | Rmin=30 mm or more (<30mm with support ring) |
Surface roughness | ≤Ra 10 |
Test points | 5mm or more from the edge of the sample, 3mm or more to each of the tested points |
Display LCD | 320 x 240 matrix TFT color LCD Display |
Power | 4 AA rechargeable battery |
Continuous Working time | 8 Hour |
Operating temperature | -20° C to +40°C |
Dimensions | 215mm x 145mm x 46mm |
Weight | 700g (with battery) |
Standard Accessories
Main Unit
AC adapter/charger
Small supporting ring
Carrying case
Impact device D
