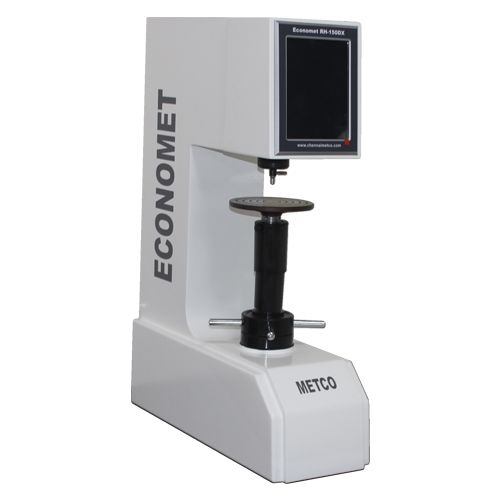

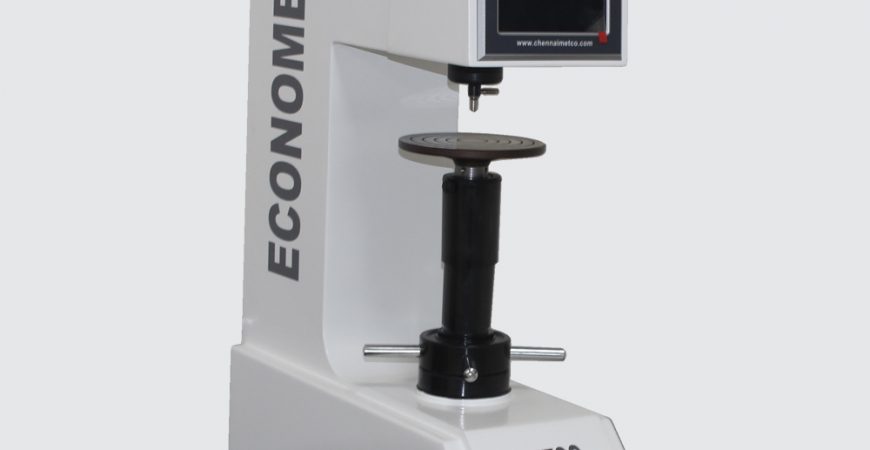

Rockwell RH-150DX
Rockwell RH-150DX
Digital Rockwell Hardness Tester
- Testing load: 60, 100, 150 kfg
- Conversion scale: superficial Rockwell, Brinell, Vickers
- Distance of indenter to outer wall: 160 mm
- Max. height of specimen: 220 mm
Digital Rockwell Hardness tester with touch screen display
Preliminary Testing force | 10kgf (98.07N) |
|---|---|
Total testing force | 60kgf(588N), 100kgf(980N), 150kgf(1471N) |
Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
Conversion scale | Superficial Rockwell, Brinell, Vickers |
Hardness measuring range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125 |
Dwell Time | 0-99 sec |
Resolution of hardness value | 0.1HR |
Load value error | ＜0.5% |
Max. Height of Specimen | 220 mm |
Distance of Indenter of outer wall | 160 mm |
Indication of Hardness value | Touch screen display |
Data output | inbuilt Printer, Rs-232 Port |
Power supply | AC220V+5%，50-60Hz |
Overall Dimension | 560 X 200 X 800 mm |
Net weight | About 70 kfg |
Standard Accessories
Diamond Rockwell Indenter
Diameter 1.5875mm Ball indenter
Weight (A.B.C)
Large, Medium, “V” shaped testing table
Hardness block ( Hrc Hight & Low, HRB)
Regulating screw
