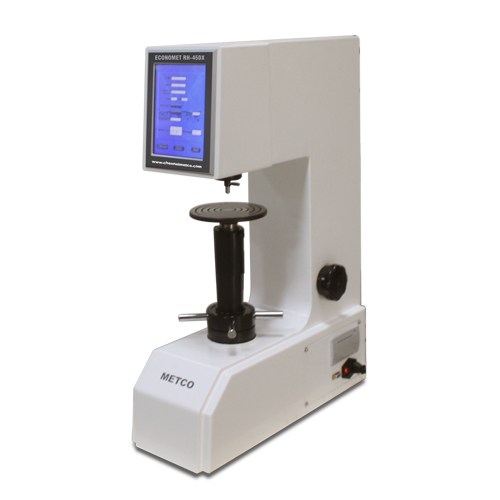

Rockwell RH-45DX
Rockwell RH-45DX
DIGITAL SUPERFICIAL ROCKWELL HARDNESS TESTER
(WITH TOUCH SCREEN DISPLAY)
- Testing load: 15, 30, 45 kfg
- Conversion scale: Rockwell, Brinell, Vickers
- Distance of indenter to outer wall: 160 mm
- Max. height of specimen: 220 mm
Preliminary Testing force | 3kgf (29.42N) |
|---|---|
Total testing force | 15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N) |
Rockwell Scale | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Conversion scale | Rockwell, Brinell, Vickers |
Hardness measuring range | HR15N:70-94, HR30N:42-86,HR45N:20-77, HR15TW:67-93, HR30TW:29-82, HR45TW:10-72 |
Dwell Time | 0-60 sec |
Resolution of hardness value | 0.1HR |
Testing force error | ≤ 1% |
Max. Height of Specimen | 200 mm |
Distance of Indenter of outer wall | 160 mm |
Indication of Hardness value | LCD Touch screen display |
Data output | In-built mini printer |
Power supply | AC220V+5%，50-60Hz |
Overall Dimension | 560 X 200 X 800 mm |
Net weight | About 70 kfg |
Standard Accessories
Diamond Rockwell Indenter
Diameter 1.5875mm Ball indenter
Weight (A.B.C)
Large, Medium, “V” shaped testing table
Hardness block ( Hrc Hight & Low, HRB)
Regulating screw
