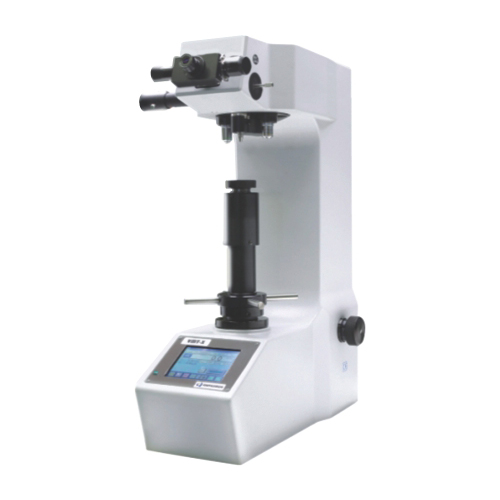

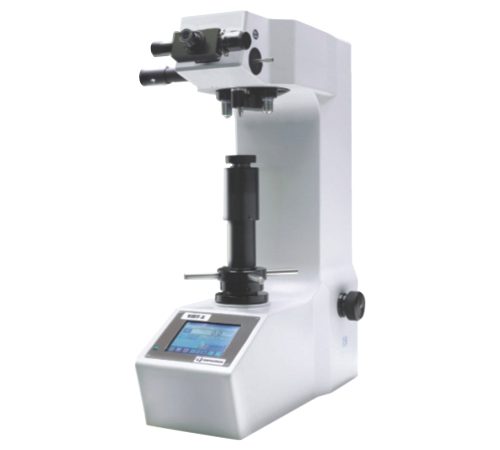

Vickers / Micro Vickers VMT X7S
Digital Vickers Hardness Tester ( Matsuzawa - japan)
VMT X7S
- Testing load: 0.3,0.5,1,3,5,10,20,30, Kgf
- Loading mechanism : Automatic Loading and Releasing Method
- Dwell time : 5 to 99 sec
- Min: Measuring Unit : 0.1 micrometer
- Max. height of specimen: 260 mm
- Max. depth of specimen : 160 mm
- Dimension and Wt : W220 X D580 X H770mm, 52 Kg
Matsuzawa ( Japan) Digital Vickers Hardness tester
Measuring area Specimen Height 260 mm and Depth 160mm
Test Load | 0.3,0.5,1,3,5,10,20,30, Kgf |
|---|---|
Loading Mechanism | Automatic Loading and Releasing Method |
Dwell Time | 5 to 99 seconds |
Min. Measuring Unit | 0.1 Micrometer |
Max. Measuring length | 999.9 Micrometer |
Magnification of Microscope | 100 x & 200X |
Turrent | Auto |
Data Memory | Max. 999 test data |
Hardness conversion | ASTM (E-140) Possible in compliance with ASTM (E-140) JIS |
Ok /NG Criteria | Data output and display: Max. Value, Min Value, dispersion ®, mean value, standard deviation. |
Max. height of specimen | 260 mm |
Max. depth of specimen | 160 mm |
Accuracy & Photographic device | JIS B 7725, ASTM E-92 Conform to JIS B7725 and ASTM E-92 & Possible to mount at any time. |
Dimension & Weight | W220xD580XH770 mm & 52Kg |
Power Supply | AC 240V 50/60 Hz Single Phase |
Load applying Speed | 85 micrometer/sec |
Standard Accessories
Hardness Standard Test Block
Diamond indenter (built in)
Measuring Microscope (Electronic type)
Object lens (built in) 20 X
Anvil 60mm flat
Anvil V Shape
Small level
Spare fuse (100 ~120 3A, 200 ~240 2 A)
Power cord (3 P 2.5 m)
Level adjusting leg
