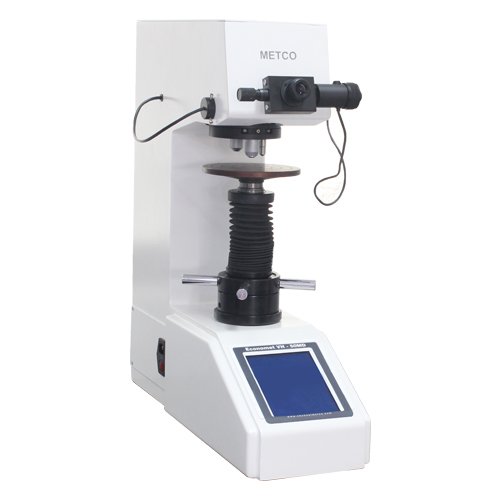

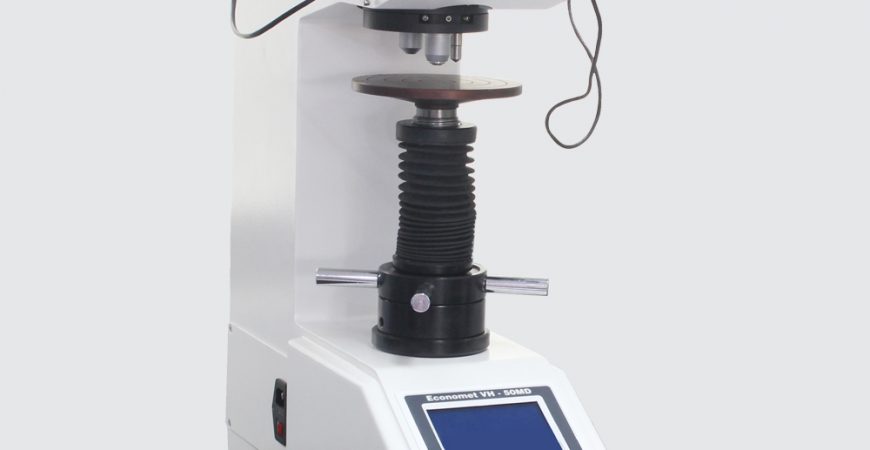

Vickers VH-50MDX
Vickers VH-50MDX
Digital automatic Turrent vickers Hardness Tester
- Testing load: 1 kgf to 50 kgf
- hardness mesuring range: 8-2900HV
- Distance of indenter to outer wall: 160 mm
- Max. height of specimen: 180 mm
- Testing force application method: Automatic loading and unloading
Digital automatic Turrent vickers Hardness tester with touch screen display
Testing force | 1Kgf(9.8N), 2Kgf(19.6N), 3Kgf(29.4N),5Kgf(49.0N), 10Kgf(98.0N), 20Kgf(196N), 30Kgf(294N), 50Kgf(490N) | |
|---|---|---|
Conversion scale | HRA, HRB, HRC, HRD, HRF, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
Mini. Measuring unit | 0.01µm | |
Hardness measuring range | 8~2900HV | |
Method of testing force applied | Automatic (loading, Dwelling , unloading) | |
Turret type | automatic | |
Eyepiece Magnification | 10X | |
Objective Magnification | 10X, 20X | |
Total Magnification | 100X, 200X | |
Dwell time | 1-99s | |
Data output | Touch-screen display, USB disk | |
Distance from the centre to the outer wall of the indenter | 160 mm | |
Power supply | AC220V+5%，50-60Hz | |
Dimensions | 580*190*700mm | |
Net weight | about 55kg |
STANDARD ACCESSORIES
10x Eyepiece
Circular Test Table (Large & Small)
V Shape Test Table
Test Block (High & Middle Range)
